50' Tow Behind Man Lift

50' Tow Behind Man Lift

Description

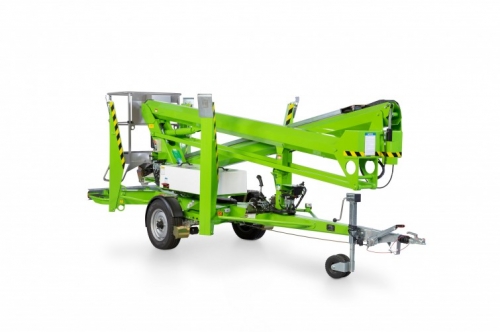

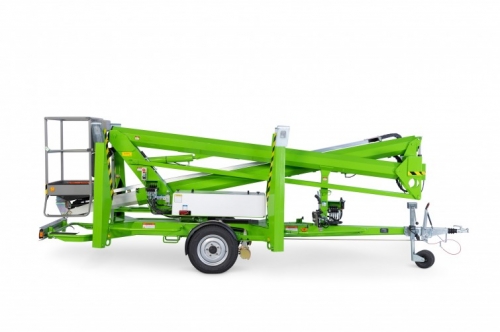

With one of the largest working envelopes in its class, the Nifty TM50 towable cherry picker delivers maximum reach with stability and control.

Octagonal boom sections provide the TM50 strength without compromising on weight and the telescopic upper boom improves accuracy when positioning the platform.

Fully proportional hydraulic outriggers make setting up and levelling the TM50 quick and easy even on gradients.

The TM50's outstanding reach makes it ideal for a wide range of applications.

Features

  • Telescopic Upper Boom
  • Greater accuracy when positioning platform
  • Hydraulic Outriggers
  • For quick & easy setup
  • Fully Proportional Hydraulic Controls
  • Simple, reliable & easy to maintain
  • Bi-Energy Available
  • Optimising utilization
  • Traction Drive Option
  • Improved manoeuvrability on site

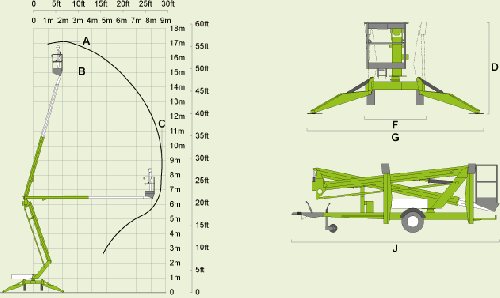

Specifications

Working Height

56ft

Working Outreach

28ft 6in

Platform Height

49ft 6in

Machine Width

5ft 5in

Machine Height

7ft

Machine Length

20ft 4in

Working Width

14ft 5in

Minimum Weight

4760lbs

Safe Working Load

500lbs

Basket Rotation

Available

Basket Width

3ft 7in

Basket Depth

2ft 2in

Outrigger Type

Hydraulic

Power Options

Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)





Please contact us for current pricing and availability.
