Snake, Micro Scope Camera
Snake, Micro Scope Camera
Snake, Micro Scope Camera

Snake, Micro Scope Camera

Description

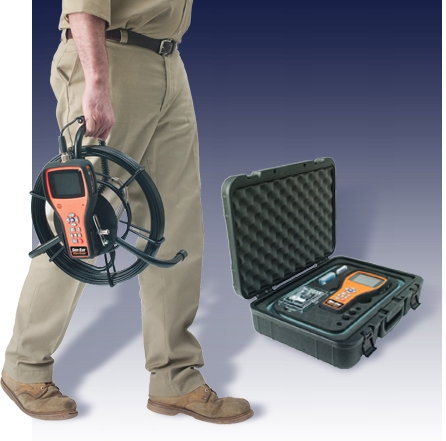

Put pipe inspection in the palm of your hand!

The Gen-Eye Micro-Scope® compact handheld camera inspection tool has a bright, easy to see 3.5” LCD screen for crisp clear pictures. You can record photos or videos on the built-in SD card reader with one-touch record button for playback on the internal screen, TV, or laptop computer through a USB port.

The Micro-Scope reel carries up to 100 ft. of micro push rod with a color camera, giving you the ability to inspect 1-1/2” to 3” drain lines and many toilet traps.

A 3 ft. probe rod with color camera lets you inspect in hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects. Probe extensions are available.

The Micro-Scope Command Module is loaded with lots of great stuff, including a digital zoom, rotatable picture, voice over recording capability, and LED brightness control. On-screen status indicators include date and time, SD card capacity, and battery strength. The rechargeable battery drive the unit for up to four hours.

Gen-Eye Micro-Scope Features:

  • 3.5” LCD color monitor
  • SD Card Reader to store stills or videos
  • One touch record button
  • On-Screen SD card capacity indicator
  • LED brightness control
  • Digital Zoom
  • Picture rotate and mirror image buttons
  • Internal microphone and speaker for voice over
  • USB port to connect to computer
  • Video-Out to connect to TV
  • Internal battery last up to 4 hours
  • On-screen battery strength indicator
  • On-Screen date and time
  • 3 ft. probe rod and color camera with 6 LED’s
  • 3 probe attachments  – 90 deg. mirror, magnet, and hook.
  • Rubber bumper protects Command Module on the job
  • Open Reel with adjustable monitor mount to give you the best viewing angle
  • Carries up to 100 ft. of micro-push rod and color camera with 12 LED’s
  • Ability to inspect 1-1/2” through 3” drain lines, and many toilet traps

SPECIFICATIONS

Gen-Eye Micro-Scope Specifications
Line Capacity:
1-1/2″ to 3″
Reel Capacity:
100 ft.
Push-Rod Diameter:
Push-Rod: .200″
Probe-Rod: .400″
Camera Dimensions:
Push-Rod: 1″ x 1.38″ L
Probe-Rod: .425″ x 1.15″ L
Sensitivity:
.5 Lux
Lighting:
Push-Rod: 12 White LED’s
Probe-Rod: 6 White LED’s
White Balance:
Auto High Speed
Reel Dimensions:
17″ L
16-1/2″ W
7-1/2″ H
Command Module Dimensions:
10-1/4″ L
5-1/4″ W
1-7/8″ H
LCD Monitor Size:
3.5″
Video Format:
NTSC or PAL
Recording Device:
SD Card
Power:
110v/60 Hz AC, 5 VDC,
4 hr. Rechargeable Battery
Operating Temperature:
14° F to 122° F-10° C to 50° C

Please contact us for current pricing and availability.
