12" Dual-Bevel Sliding Compound Miter Saw w/ Laser & Stand

Description

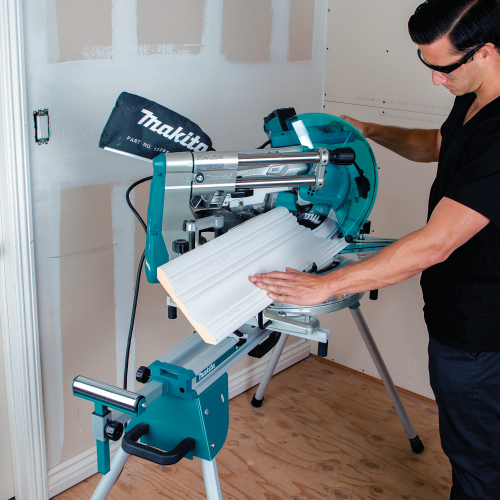

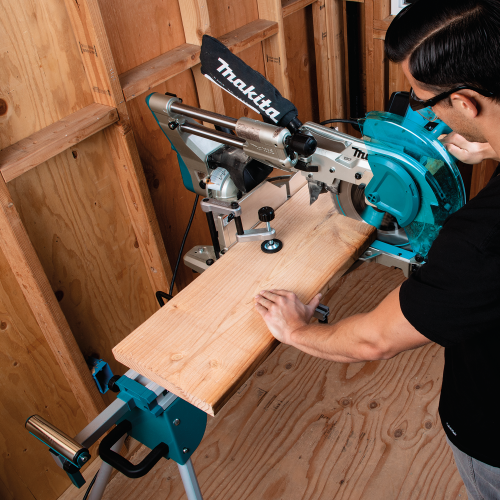

The Makita 12” Dual-Bevel Sliding Compound Miter Saw with Laser and Stand (model LS1219LX) combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity of baseboard (6-3/4”) and crown molding (8” nested). It will also make 15” crosscuts at 90 degrees. The saw miters 0° to 60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0° to 48° (left and right).

The saw is powered by a 15 AMP direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience.

  • CAPACITY : Cuts up to 8" crown (nested), 6-3/4" base (vertical), and crosscuts a 4x14 at 90°

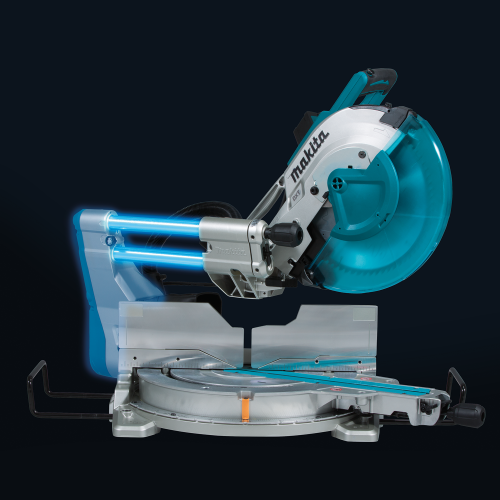

  • DESIGN : Unique 2-Steel Rail Sliding System design offers single slide-glide operation
  • CONVENIENCE : In-front bevel lock for convenient operation
  • PRECISION : Built-in laser clearly indicates line-of-cut whether blade is turning or not
  • INCLUDES : Blade, dust bag, vertical vise, wrenches, triangle, and stand

FEATURES

  • Unique 2-Steel Rail Sliding System design offers single slide-glide operation
  • Increased capacity for up to 8" crown molding (vertically nested), 6-3/4" baseboard (vertical), and 15" crosscuts at 90°
  • Includes a durable compact folding stand with transport wheels and a side handle for easier job site portability; features an aluminum tubular design weighing only 33.7 lbs.
  • In-front bevel lock for convenient operation
  • Dual dust collection ports provide excellent dust extraction performance
  • Material support extensions of the stand extend 100-1/2"; supported up to 500 lbs. for increased cutting efficiency
  • Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity (6-3/4")
  • Linear ball bearing system engineered to deliver "dead-on" accurate cuts
  • Less weight (65 lbs.) and the most compact design in its class for easy jobsite portability
  • Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
  • Large-sized aluminum base improves stability of material for efficient cutting
  • Soft start suppresses start-up reaction for smooth start-ups and longer gear life
  • Miters 0-60° left and right; bevels 0-48° left and right
  • Positive miter stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
  • Electronic speed control maintains constant speed under load for smoother, higher quality cutting
  • Integrated upper and lower 5-1/2" tall fence system offers added rigidity for more precise miter and bevel cuts
  • Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
  • Ergonomic rubberized horizontal D-handle design for better fit and added comfort
  • Replaceable stainless steel miter scale features large and easy-to-read markings
  • Easy-to-read dual bevel scale for more precise adjustments
  • See-through blade guard system for greater visibility of blade and line of cut
  • Easy blade changes for increased efficiency
  • Oversized trigger switch for better fit, added comfort and easier operation
  • Easy one-touch slide lock for convenience
  • Simple 90º turn-of-the-knob miter angle lock/unlock mechanism

SPECS

  • Blade Diameter : 12"
  • Arbor : 1"
  • Max. Cutting Capacity (miter 90°) : 3-5/8" x 15"
  • Max. Cutting Capacity (miter 45°, L/R) : 3-5/8" x 10-1/2"
  • No Load Speed : 3,200 RPM
  • Dimensions (LxWxH) : 35-1/4" x 26-1/8" x 28-1/2"
  • Net Weight : 65 lbs.
