Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turns around sensitive material is critical.

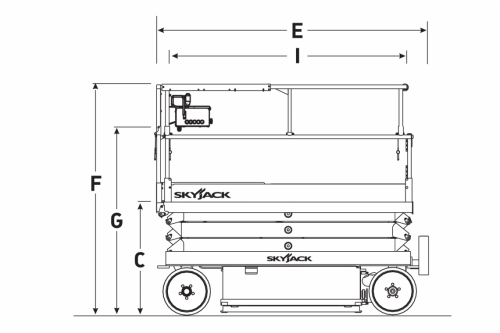

| SJIII 3220 | ||
|---|---|---|
| Work Height | 26’ (7.92 m) | |
| Raised Platform Height | 20’ (6.10 m) | |
| Lowered Platform Height | 38” (0.97 m) | |
| Overall Width | 32” (0.81 m) | |
| Overall Length | 91.5” (2.32 m) | |
| Stowed Height (Rails Up) | 77.5” (1.97 m) | |
| Stowed Height (Rails Down) | OPT 63.5” (1.61 m) | |
| Platform Width (Inside Dimension) | 28” (0.71 m) | |
| Platform Length (Inside Dimension) | 84” (2.13 m) | |
| Extension Deck (Roll Out) | 3’ (0.91 m) | |
| Ground Clearance (Stowed) | 3.5” (8.89 cm) | |
| Ground Clearance (raised) | 0.75” (1.90 cm) | |
| Wheelbase | 69” (1.75 m) | |
| Weight | 3,510 lbs (1,592 kg) | |
| Gradeability | 30% | |
| Turning Radius (Inside) | 50” (1.27 m) | |
| Turning Radius (Outside) | 108” (2.74 m) | |
| Lift Time (With Rated Load) | 33 sec | |
| Lower Time (With Rated Load) | 29 sec | |
| Drive Speed (Stowed) | 2 mph (3.2 km/h) | |
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) | |
| Maximum Drive Height | Full Height | |
| Capacity (Overall) | 900 lbs (408 kg) | |
| Distributed Capacity (Main Platform) | 600 lbs (272 kg) | |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | |
| Local Floor Load (With Rated Load) | 130 psi (897 kPa) | |
| Overall Floor Load (With Rated Load) | 245 psf (12 kPa) | |
| Maximum # of Persons | 2 | |
| Wind Rating | 28 mph (12.5 m/s) | |
| Tire Type | Solid, N/M | |
| Tire Size | 16 x 5 x 12 |
Please contact us for current pricing and availability.
